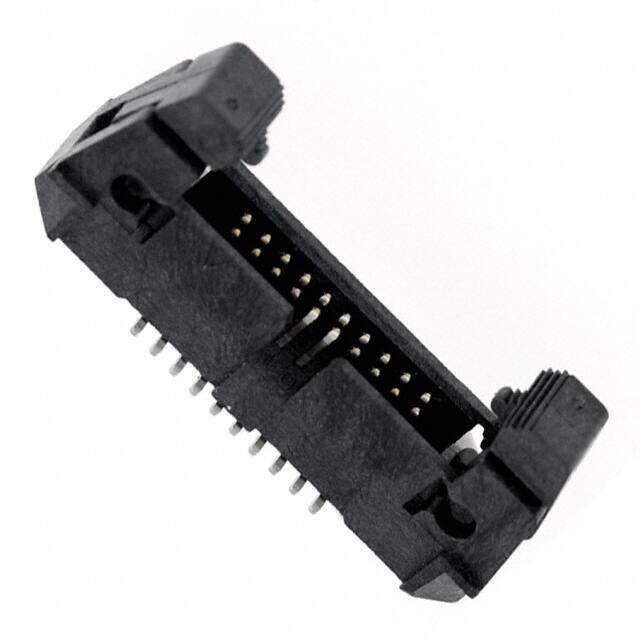

EHF-110-01-L-D-SM
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .05" 20POS DUAL SMD
PDF
/
Buying Options
Total Price: USD $4.73
Unit Price: USD $4.7344
≥1 USD $4.7344
≥10 USD $4.28472
≥100 USD $3.751264
≥500 USD $3.476
Inventory: 3643
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Material Liquid Crystal Polymer
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2003
Series EHF
JESD-609 Code e3
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 20
Number of Rows 2
Gender Male
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 20
Orientation Straight
Depth 6.67mm
Insulation Height 0.325 8.25mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1.75A
Pitch - Mating 0.050 1.27mm
Number of Conductors ONE
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 1.27mm
Contact Finish - Post Tin
Contact Length - Mating 0.120 3.05mm
PCB Contact Pattern RECTANGULAR
Housing Color Black
Mating Contact Pitch 0.05 inch
Max Current Rating 1.75A
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 4.953 mm
Dimensions
Height 8.64mm
Length 27.18mm
Width 6.67mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
