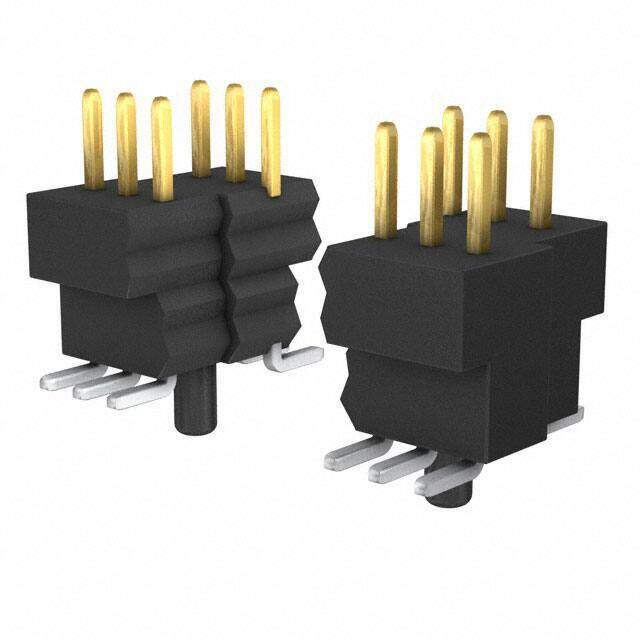

BKT-159-04-L-V-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 59 POS 1mm Solder ST SMD Tube
PDF
/
Inventory: 8992
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 6mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Technical
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.019 inch
Body Depth 0.149 inch
PCB Contact Pattern STAGGERED
Contact Length - Mating 0.065 1.65mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Unshrouded
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.191 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.137 3.47mm
Terminal Pitch 1mm
Total Number of Contacts 118
Current Rating (Amps) 2.8A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Gender Male
Number of Rows 2
Number of Positions 59
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series BKT
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Mounting Option 1 LOCKING
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
