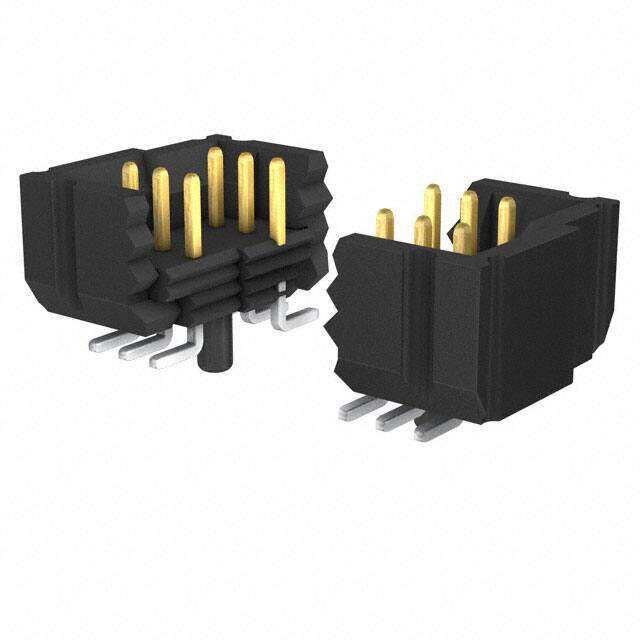

BKT-147-02-L-V-S-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 47POS 1MM
PDF
/
Inventory: 7632
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 4.5mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Technical
PCB Contact Row Spacing 3.9116 mm
Polarization Key POLAR PIN POSITION
Mating Contact Pitch 0.039 inch
Body Depth 0.168 inch
PCB Contact Pattern STAGGERED
Contact Length - Mating 0.065 1.65mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.048 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.168 4.27mm
Terminal Pitch 0.9906mm
Total Number of Contacts 47
Current Rating (Amps) 2.8A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature NONE
Number of Rows 2
Number of Positions 47
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, End Shrouds
JESD-609 Code e3
Series BKT
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Board Mounting Option POSITIONING PIN
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
