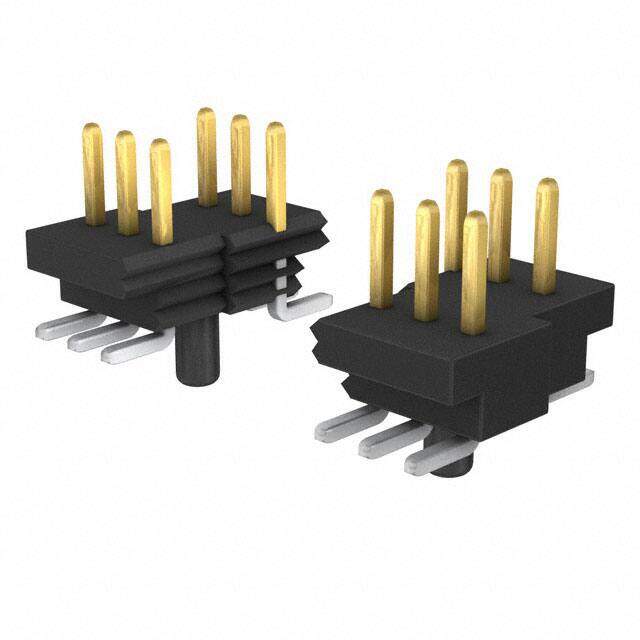

BKT-131-01-L-V-A-P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 31 POS 1mm Solder ST SMD Tube
PDF
/
Inventory: 2745
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Board Mounting Option POSITIONING PIN
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series BKT
JESD-609 Code e3
Feature Board Guide, Pick and Place
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 31
Number of Rows 2
Gender Male
Additional Feature POLARIZED
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.8A per Contact
Total Number of Contacts 62
Terminal Pitch 1mm
Insulation Height 0.064 1.63mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.039 1.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.641 inch
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.065 1.65mm
PCB Contact Pattern STAGGERED
Body Depth 0.076 inch
Mating Contact Pitch 0.039 inch
Polarization Key POLAR PIN POSITION
PCB Contact Row Spacing 3.9116 mm
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Stack Height (Mating) 4.14mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
