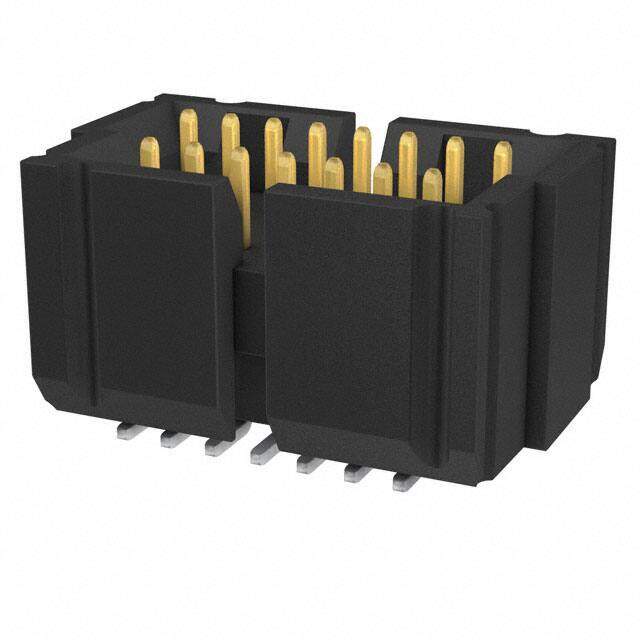

BKT-115-04-L-V-S-P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 15 POS 1mm Solder ST SMD
PDF
/
Inventory: 7520
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.8A per Contact
Total Number of Contacts 30
Terminal Pitch 1mm
Insulation Height 0.227 5.77mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.039 1.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.418 inch
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.065 1.65mm
PCB Contact Pattern STAGGERED
Mating Contact Pitch 0.039 inch
Polarization Key POLAR PIN POSITION
PCB Contact Row Spacing 3.9116 mm
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Gender Male
Number of Rows 2
Number of Positions 15
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature End Shrouds, Pick and Place
JESD-609 Code e3
Series BKT
Published 2016
Packaging Tube
Operating Temperature -55°C~125°C
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Stack Height (Mating) 6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
