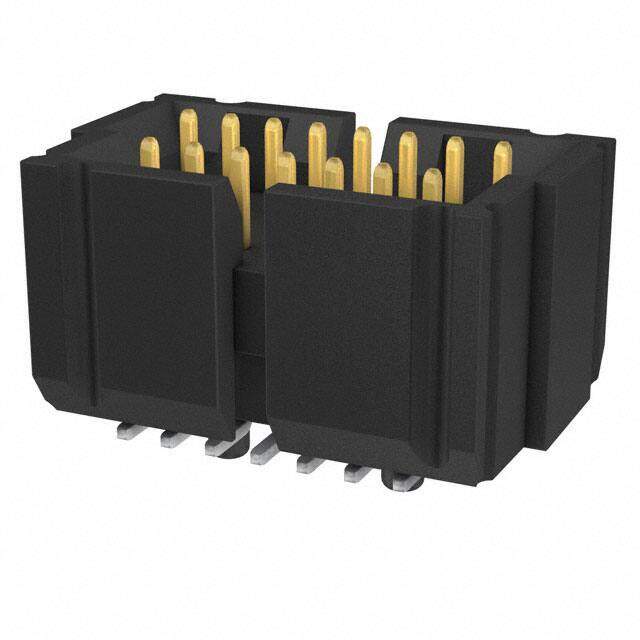

BKT-115-04-L-V-S-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
POLARIZED Rectangular Connector Header
PDF
/
Inventory: 8271
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 6mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Technical
PCB Contact Row Spacing 3.9116 mm
Polarization Key POLAR PIN POSITION
Mating Contact Pitch 0.039 inch
PCB Contact Pattern STAGGERED
Contact Length - Mating 0.065 1.65mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 0.418 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.227 5.77mm
Terminal Pitch 1mm
Total Number of Contacts 30
Current Rating (Amps) 2.8A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Gender Male
Number of Rows 2
Number of Positions 15
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, End Shrouds
JESD-609 Code e3
Series BKT
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Board Mounting Option POSITIONING PIN
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
