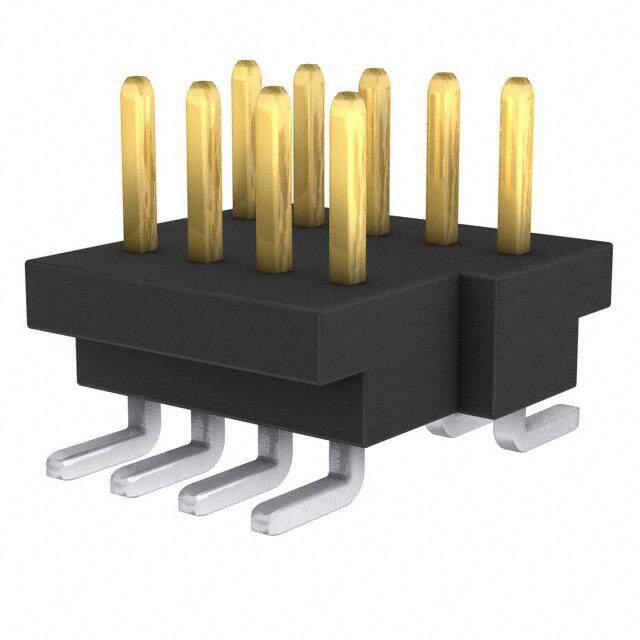

BKT-109-02-L-V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 9 POS 1mm Solder ST SMD Tube
PDF
/
Inventory: 9410
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2015
Series BKT
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 9
Number of Rows 2
Gender Male
Additional Feature TIGER CLAW CONTACT
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.8A per Contact
Total Number of Contacts 9
Orientation Straight
Terminal Pitch 0.5mm
Depth 5.08mm
Insulation Height 0.064 1.63mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.039 1.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.065 1.65mm
PCB Contact Pattern STAGGERED
Contact Resistance 15mOhm
Max Current Rating 1.5A
Polarization Key POLAR PIN POSITION
Dimensions
Length 5.25mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Stack Height (Mating) 4.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
