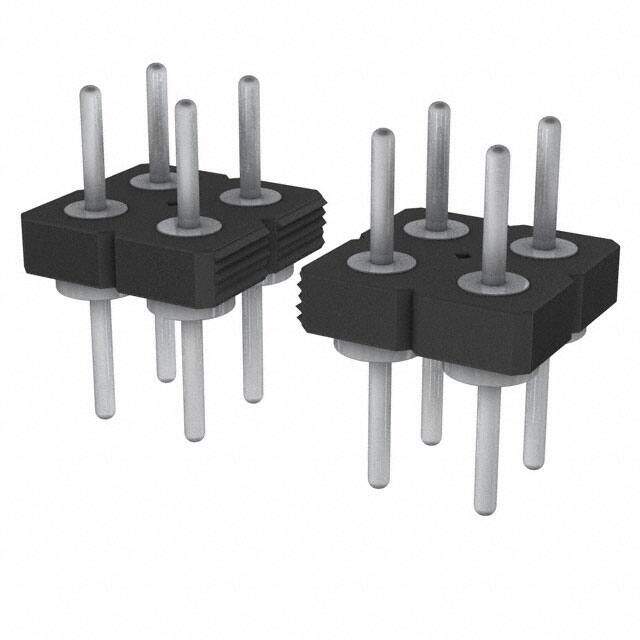

BDL-135-T-E

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description SAMTEC BDL-135-T-E Board-To-Board Connector, Vertical, BDL Series, 70 Contacts, Header, 2.54 mm, Through Hole, 2 Rows
PDF
/
Inventory: 7101
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Additional Feature LOW PROFILE
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.070 1.78mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 3.5 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.105 2.67mm
PCB Contact Pattern RECTANGULAR
Overall Contact Length 0.300 7.62mm
Mating Contact Pitch 0.1 inch
Gender Male
Number of Rows 2
Number of Positions 70
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series BDL
Published 2013
Packaging Tube
Operating Temperature -55°C~125°C

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant

Physical

Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Bronze

Supply Chain

Factory Lead Time 3 Weeks
