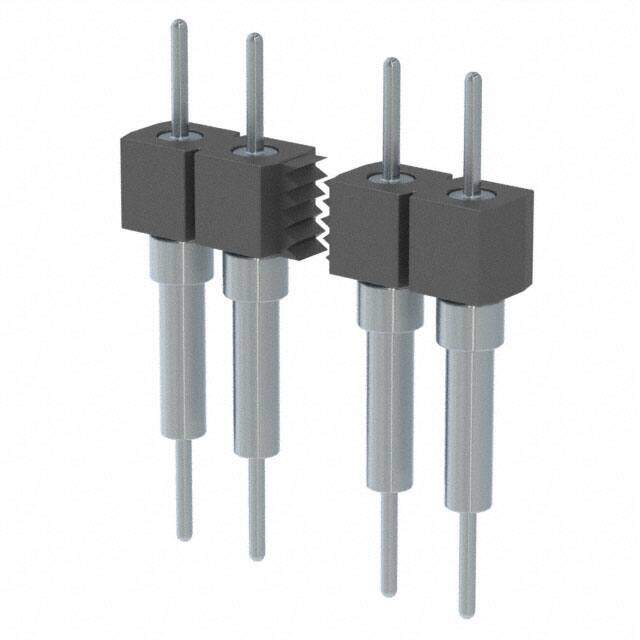

BBS-112-T-B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SAMTEC BBS-112-T-B Board-To-Board Connector, BBS Series, 12 Contacts, Header, 2.54 mm, Solder, 1 Rows
PDF
/
Buying Options
Total Price: USD $2.87
Unit Price: USD $2.866827
≥1 USD $2.866827
≥10 USD $2.704553
≥100 USD $2.551459
≥500 USD $2.407036
≥1000 USD $2.270788
Inventory: 1100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Brass, Bronze
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2009
Series BBS
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 12
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 2.54mm
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.125 3.18mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Finish - Post Nickel
Contact Length - Mating 0.125 3.18mm
PCB Contact Pattern RECTANGULAR
Overall Contact Length 0.585 14.86mm
Dimensions
Length 30.48mm
Contact Finish Thickness - Post 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
