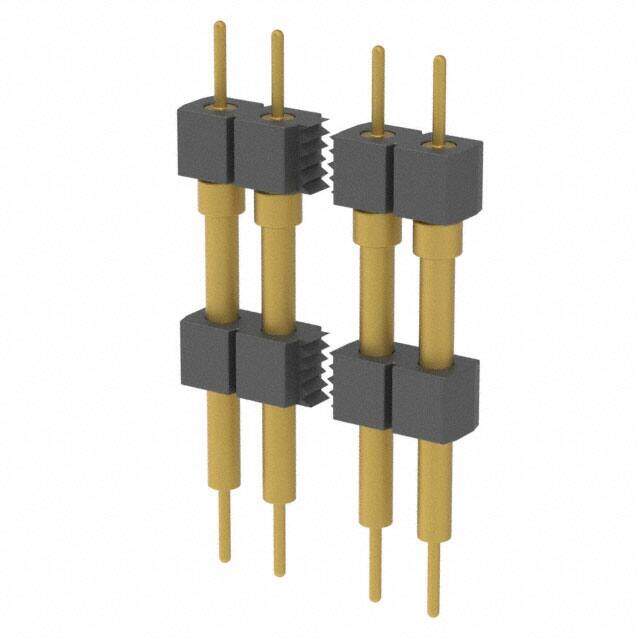

BBS-110-G-G image
Favorite
BBS-110-G-G image
Favorite

BBS-110-G-G

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube
PDF
/
Inventory: 4295
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Contact Finish Thickness - Post 50.0μin 1.27μm
Contact Finish Thickness - Mating 20.0μin 0.51μm

Technical

Overall Contact Length 0.835 21.21mm
Contact Length - Mating 0.125 3.18mm
Contact Finish - Post Nickel
Number of Contacts 10
Shrouding Unshrouded
Contact Length - Post 0.125 3.18mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.585 14.86mm
Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series BBS
Packaging Tube
Operating Temperature -55°C~125°C

Physical

Insulation Material Polyester, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 3 Weeks
