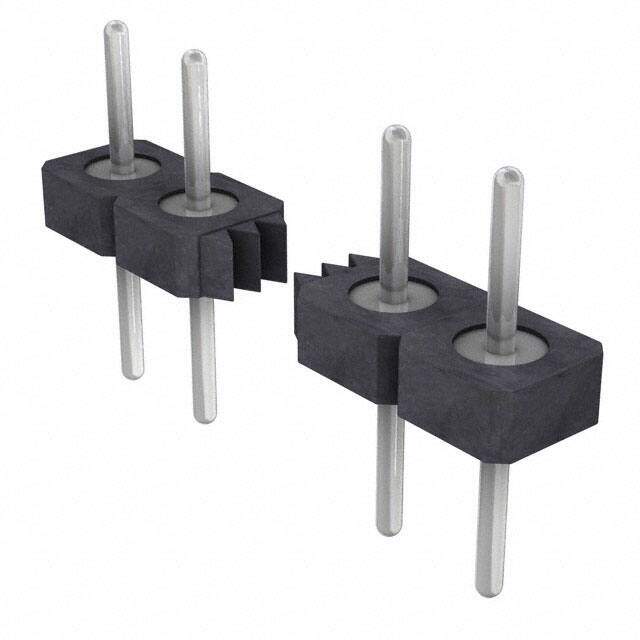

BBL-127-T-E image
Favorite
BBL-127-T-E image
Favorite

BBL-127-T-E

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description SAMTEC BBL-127-T-E Stacking Board Connector, Low Profile, BBL Series, 27 Contacts, Header, 2.54 mm, Solder, 1 Rows
PDF
/
Inventory: 4734
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Contact Finish Thickness - Post 50.0μin 1.27μm
Width 2.54mm
Length 68.6mm
Height 1.78mm

Technical

Row Spacing 2.54 mm
Overall Contact Length 0.300 7.62mm
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.105 2.67mm
Contact Finish - Post Nickel
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.125 3.18mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.070 1.78mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Gender Male
Number of Rows 1
Number of Positions 27
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Series BBL
Published 2008
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Bronze
