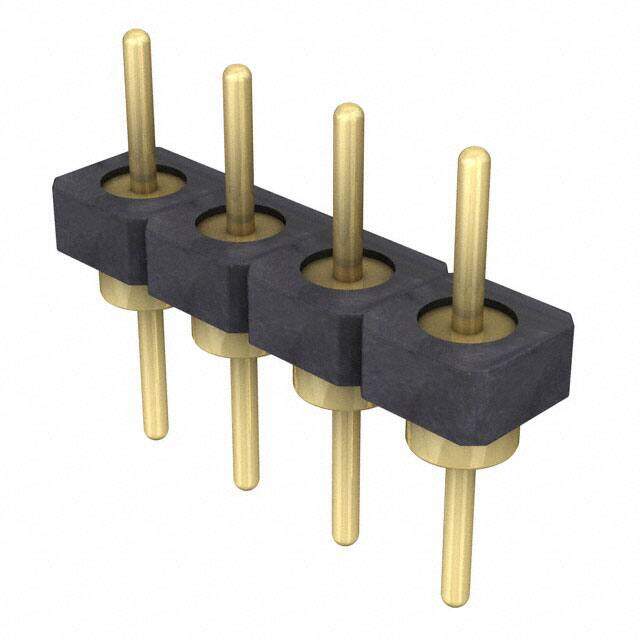

BBL-104-G-F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SAMTEC - BBL-104-G-F - HEADER, 2.54MM, LO PRO, 4WAY
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.156
≥1 USD $2.156
≥10 USD $1.95712
≥100 USD $1.72436
≥500 USD $1.465675
≥1000 USD $1.250137
≥3000 USD $1.136925
Inventory: 406
Minimum: 1
-
+
Technical Details
Physical
Contact Material Brass, Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2007
Series BBL
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Number of Rows 1
Gender Male
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 2.54mm
Insulation Height 0.085 2.15mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.125 3.18mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Finish - Post Nickel
Contact Length - Mating 0.122 3.10mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Overall Contact Length 0.332 8.43mm
Max Current Rating 1A
Dimensions
Length 10.16mm
Plating Thickness 20μin
Contact Finish Thickness - Mating 20.0μin 0.51μm
Contact Finish Thickness - Post 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
