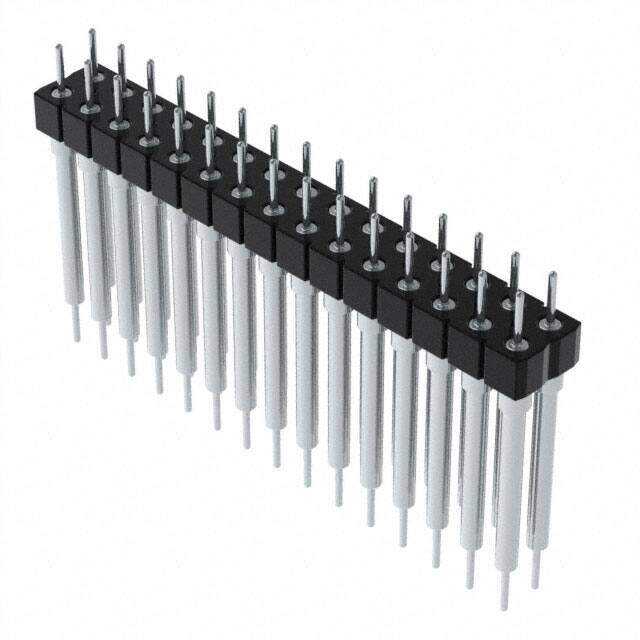

BBD-115-T-C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Tube
PDF
/
Inventory: 8559
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Post 50.0μin 1.27μm
Technical
Mating Contact Pitch 0.1 inch
Overall Contact Length 0.835 21.21mm
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.125 3.18mm
Contact Finish - Post Nickel
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.5 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.585 14.86mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Number of Positions 30
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series BBD
Packaging Tube
Operating Temperature -55°C~125°C
