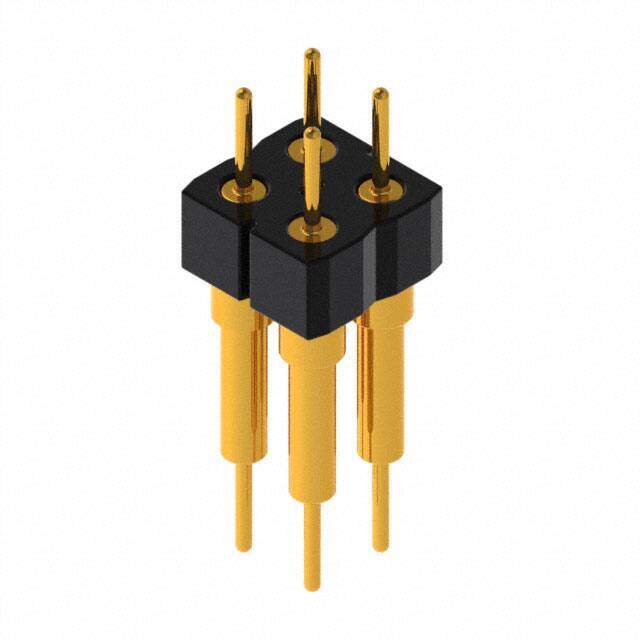

BBD-102-G-B image
Favorite
BBD-102-G-B image
Favorite

BBD-102-G-B

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description SAMTEC BBD-102-G-B Stacking Board Connector, BBD Series, 4 Contacts, Header, 2.54 mm, Through Hole, 2 Rows
PDF
/
Inventory: 4957
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyester, Glass Filled

Technical

Operating Temperature -55°C~125°C
Packaging Tube
Published 2014
Series BBD
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Nickel
Contact Length - Mating 0.125 3.18mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Overall Contact Length 0.585 14.86mm
Mating Contact Pitch 0.1 inch

Dimensions

Contact Finish Thickness - Mating 20.0μin 0.51μm
Contact Finish Thickness - Post 50.0μin 1.27μm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
