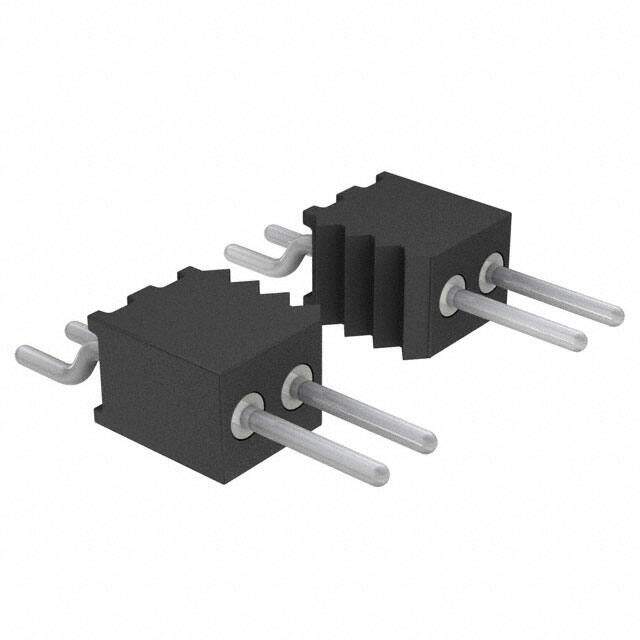

850-80-046-40-251101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD R/A 46POS 1.27MM
PDF
/
Inventory: 9002
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series 850
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 46
Number of Rows 1
Voltage - Rated 150VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 1A
Total Number of Contacts 46
Insulation Height 0.087 2.20mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.118 3.00mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.087 inch
Body Depth 0.232 inch
Mating Contact Pitch 0.05 inch
Durability 500 Cycles
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
