802-80-006-30-001191
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

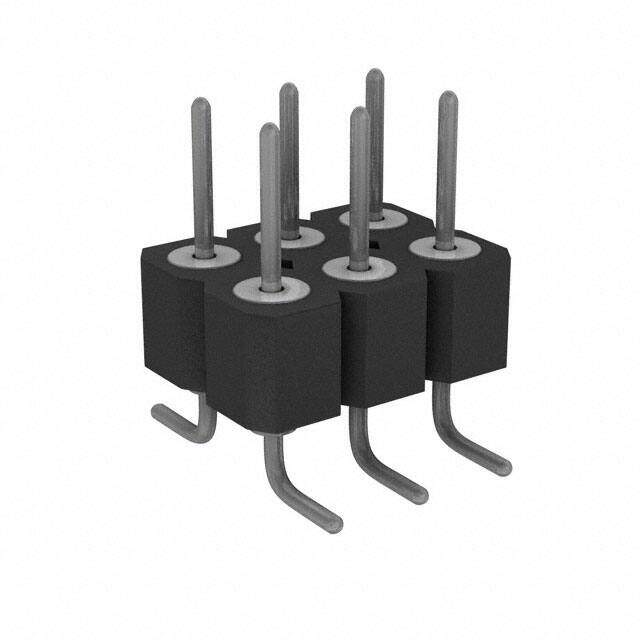

Preci-Dip 2.54mm 6 Way 2 Row Straight Surface Mount Male Multiway Connector
PDF
/
Inventory: 972
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material PET
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2012
Series 802
Feature Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Number of Rows 2
Gender Male
Voltage - Rated 150VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Orientation Straight
Insulation Height 0.110 2.79mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Contact Length - Mating 0.191 4.85mm
Dimensions
Height 2.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
