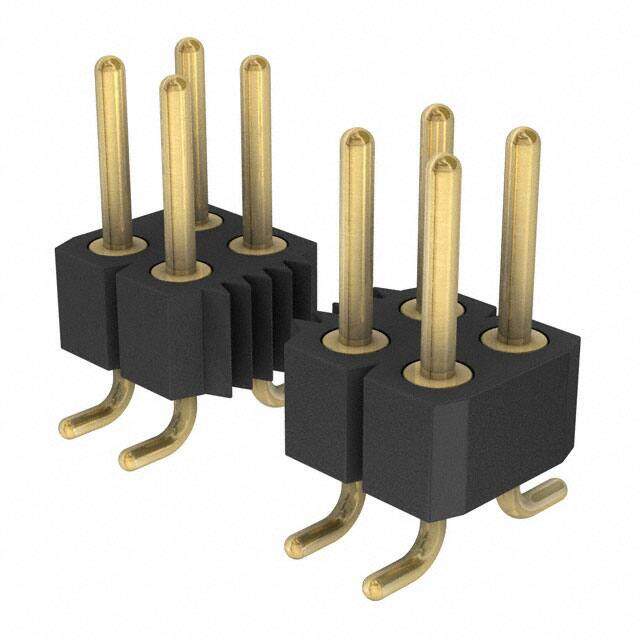

802-10-034-30-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 34POS 2.54MM
PDF
/
Inventory: 10021
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 802
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 34
Number of Rows 2
Voltage - Rated 150VDC
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Total Number of Contacts 34
Insulation Height 0.110 2.79mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.7 inch
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.191 4.85mm
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Body Depth 0.189 inch
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.1 inch
Dielectric Withstanding Voltage 1400VAC V
Durability 500 Cycles
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
