800-80-029-65-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

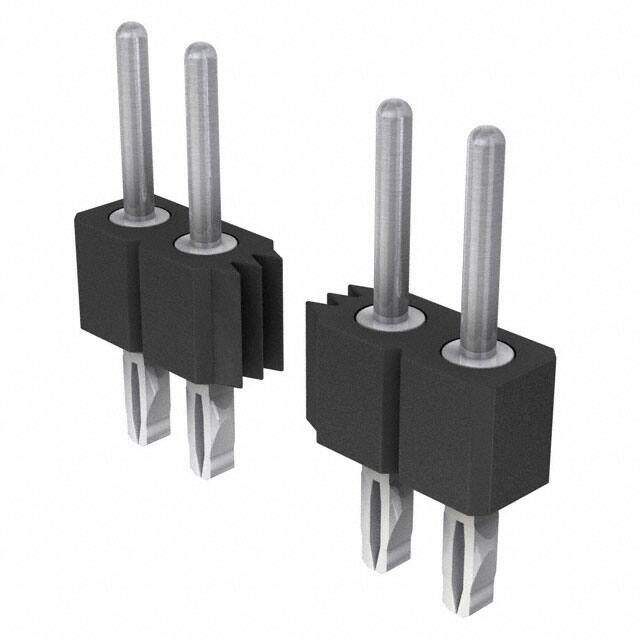

CONN HEADER VERT 29POS 2.54MM
PDF
/
Inventory: 8707
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series 800
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
Connector Type Header
Number of Positions 29
Number of Rows 1
Voltage - Rated 150VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Insulation Height 0.116 2.95mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 2.9 inch
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.191 4.85mm
PCB Contact Pattern RECTANGULAR
Overall Contact Length 0.427 10.85mm
Durability 500 Cycles
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Alternative Model
