Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

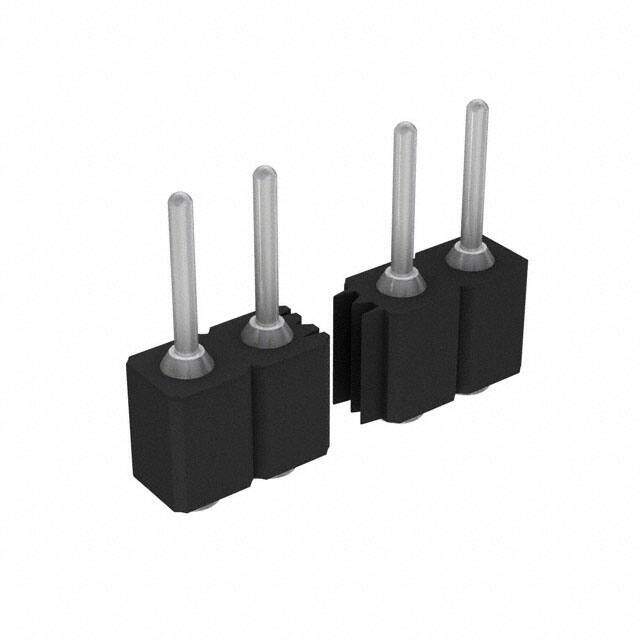

Description CONN HEADER SMD 20POS 2.54MM
PDF
/
Inventory: 5974
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 50.8mm

Technical

Durability 500 Cycles
Max Current Rating 3A
Max Voltage Rating (AC) 100V
Rated Current (Signal) 3A
Housing Color Black
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.141 3.60mm
Number Of PCB Rows 1
Shrouding Unshrouded
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.110 2.79mm
Depth 2.54mm
Orientation Straight
Total Number of Contacts 20
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 150VDC
Number of Rows 1
Number of Positions 20
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 800
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass
