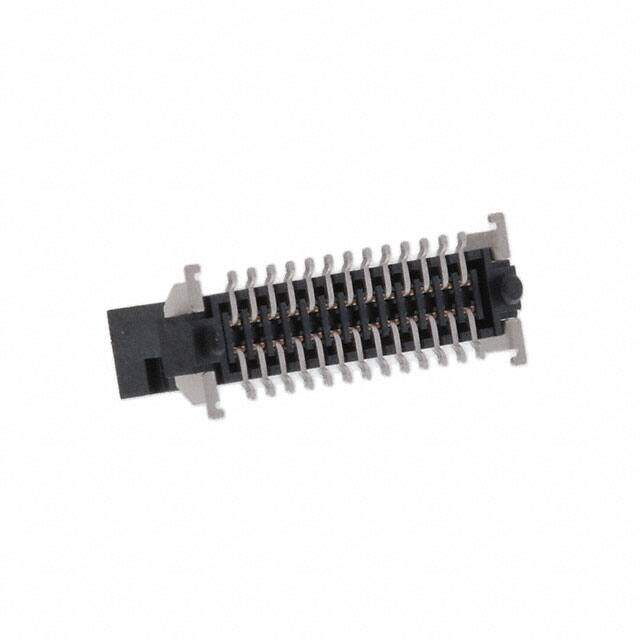

1714938 image
Favorite
1714938 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 1.27MM 26POS SMD
PDF
/
Buying Options
Total Price: USD $3.23
Unit Price: USD $3.2296
≥1 USD $3.2296
Inventory: 98
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Liquid Crystal Polymer (LCP)

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series COMBICON FP
Feature Board Guide, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 26
Number of Rows 2
Voltage - Rated 500V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1.4A
Insulation Height 0.264 6.70mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.157 4.00mm

Dimensions

Stack Height (Mating) 8mm 10.8mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
