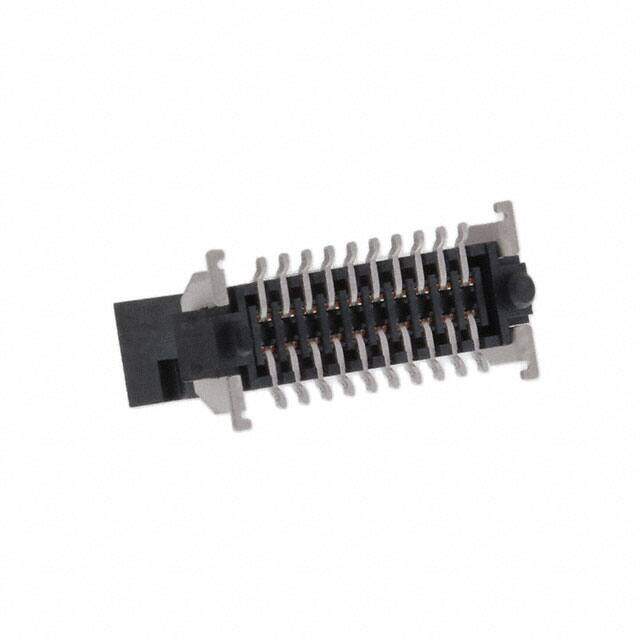

1714937 image
Favorite
1714937 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 1.27MM 20POS SMD
PDF
/
Buying Options
Total Price: USD $3.18
Unit Price: USD $3.1768
≥1 USD $3.1768
Inventory: 225
Minimum: 1
-
+

Technical Details

Dimensions

Stack Height (Mating) 8mm 10.8mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Technical

Contact Length - Mating 0.157 4.00mm
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.264 6.70mm
Current Rating (Amps) 1.4A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500V
Number of Rows 2
Number of Positions 20
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
Series COMBICON FP
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 4 Weeks
