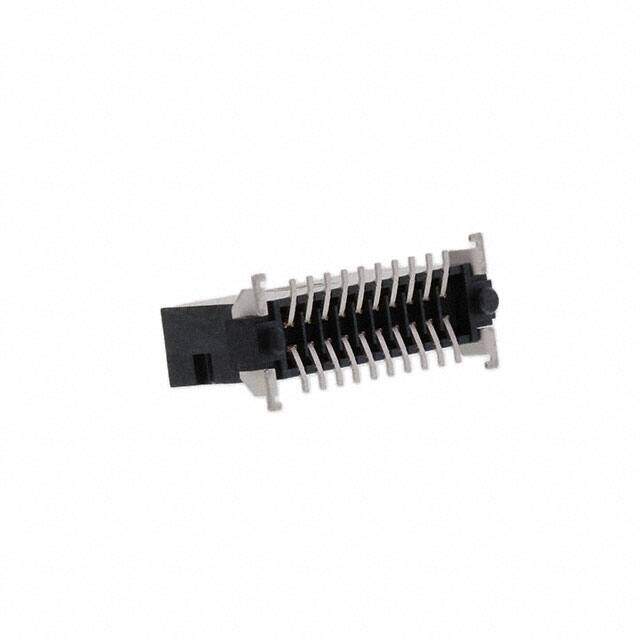

1714927 image
Favorite
1714927 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 1.27MM 20POS SMD
PDF
/
Buying Options
Total Price: USD $4.07
Unit Price: USD $4.065953
≥1 USD $4.065953
≥10 USD $3.835804
≥100 USD $3.618685
≥500 USD $3.413857
≥1000 USD $3.220611
Inventory: 8689
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 9.5mm 12.3mm

Technical

Contact Length - Mating 0.157 4.00mm
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.323 8.20mm
Current Rating (Amps) 1.4A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500V
Number of Rows 2
Number of Positions 20
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
Series COMBICON FP
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 4 Weeks
