1714925
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

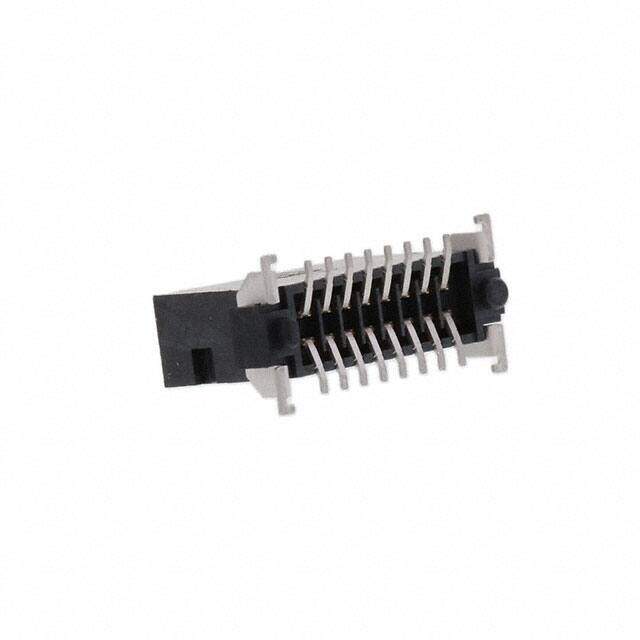

COMBICON FP RoHS Compliant Board Guide Solder Retention Gold Connector Header -55C~125C 1.4A 500V 0.157 4.00mm
PDF
/
Buying Options
Total Price: USD $4.06
Unit Price: USD $4.059933
≥1 USD $4.059933
≥10 USD $3.830127
≥100 USD $3.613328
≥500 USD $3.408803
≥1000 USD $3.215853
Inventory: 9338
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series COMBICON FP
Feature Board Guide, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 16
Number of Rows 2
Voltage - Rated 500V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1.4A
Insulation Height 0.323 8.20mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.157 4.00mm
Dimensions
Stack Height (Mating) 9.5mm 12.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
