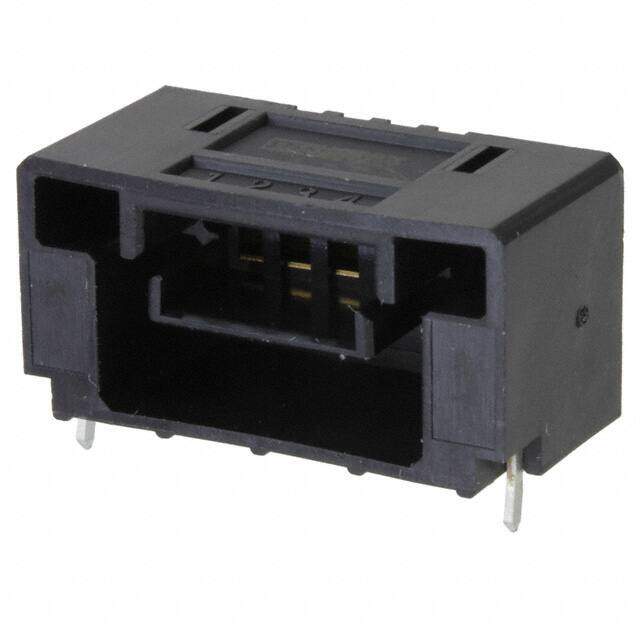

1701362
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
COMBICON HD RoHS Compliant 2011 Not Applicable Connector Header UL94V-0 5A 160V 0.102 2.60mm
PDF
/
Inventory: 1106
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Safety Approval UL
Number of Ways 4
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
ELV Compliant
Housing Color Black
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.102 2.60mm
Pitch - Mating 0.100 2.54mm
Current Rating 5A
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.512 13.00mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 160V
Gender Male
Number of Rows 1
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series COMBICON HD
Published 2011
Packaging Bulk
Physical
Weight 4.949997g
Material Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 6 Weeks
