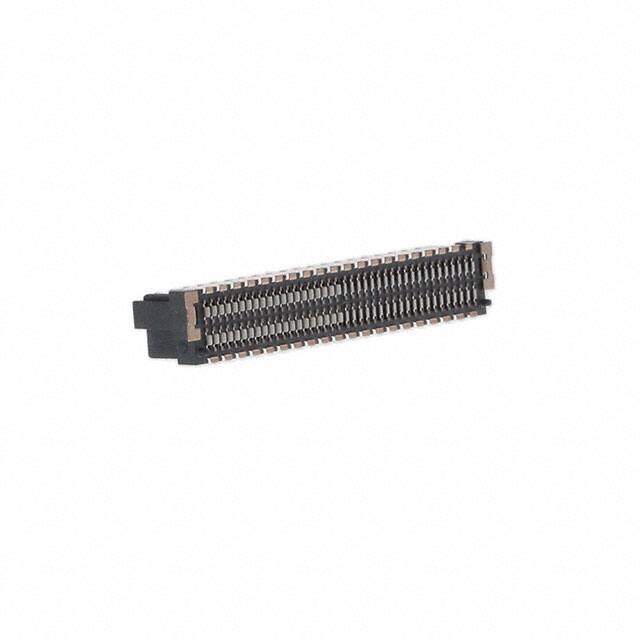

1043757 image
Favorite
1043757 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 0.8MM 80POS SMD
PDF
/
Buying Options
Total Price: USD $11.46
Unit Price: USD $11.4576
≥1 USD $11.4576
Inventory: 265
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Liquid Crystal Polymer (LCP)

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series COMBICON FP
Feature Board Guide, Shielded, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 80
Number of Rows 2
Voltage - Rated 500V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1.4A
Insulation Height 0.281 7.15mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.031 0.80mm
Insulation Color Black
Row Spacing - Mating 0.047 (1.20mm)
Shrouding Shrouded - 4 Wall

Dimensions

Stack Height (Mating) 7.5mm 10.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
