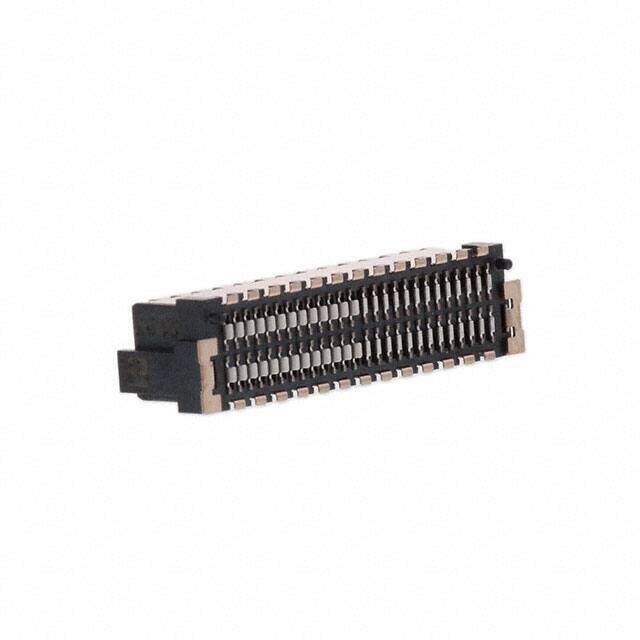

1043756
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
COMBICON FP RoHS Compliant Board Guide Shielded Solder Retention Gold Connector Header -55C~125C 1.4A 500V 0.281 7.15mm
PDF
/
Buying Options
Total Price: USD $6.66
Unit Price: USD $6.6616
≥1 USD $6.6616
Inventory: 262
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.5mm 10.5mm
Technical
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.047 (1.20mm)
Insulation Color Black
Pitch - Mating 0.031 0.80mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.281 7.15mm
Current Rating (Amps) 1.4A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500V
Number of Rows 2
Number of Positions 52
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Shielded, Solder Retention
Series COMBICON FP
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
