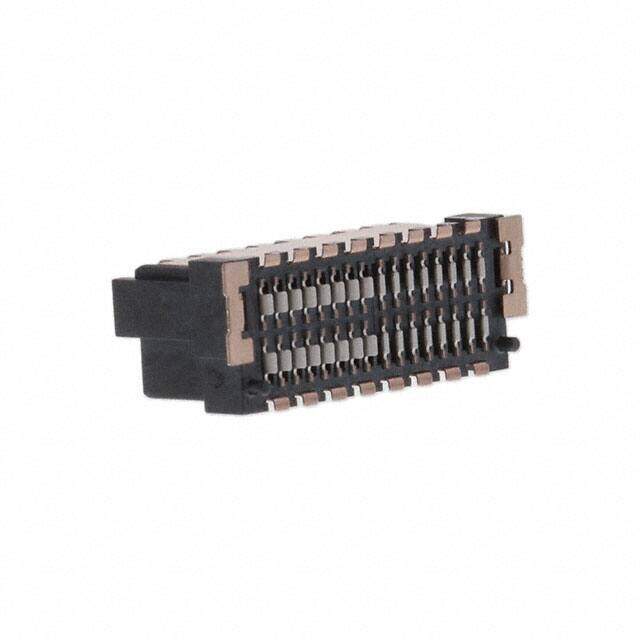

1043733 image
Favorite
1043733 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description COMBICON FP RoHS Compliant Board Guide Shielded Solder Retention Gold Connector Header -55C~125C 1.4A 500V 0.281 7.15mm
PDF
/
Buying Options
Total Price: USD $5.63
Unit Price: USD $5.632
≥1 USD $5.632
Inventory: 253
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 7.5mm 10.5mm

Technical

Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.047 (1.20mm)
Insulation Color Black
Pitch - Mating 0.031 0.80mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.281 7.15mm
Current Rating (Amps) 1.4A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500V
Number of Rows 2
Number of Positions 32
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Shielded, Solder Retention
Series COMBICON FP
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 10 Weeks
