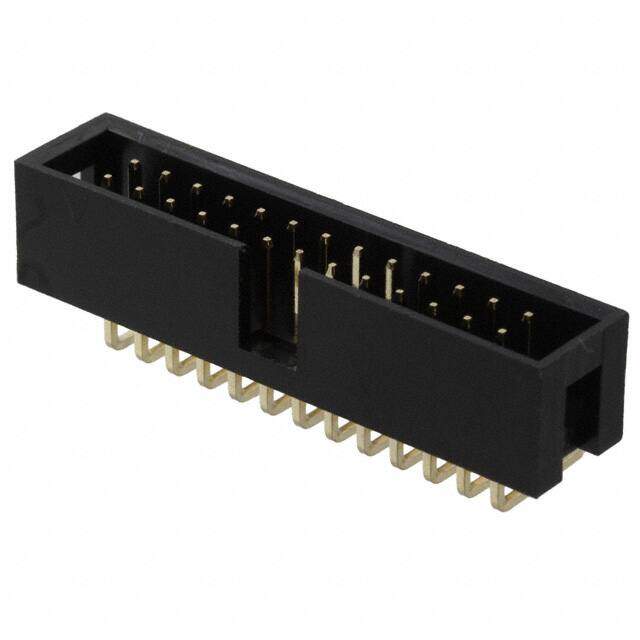

302-R261
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Socket Strip SKT 26 POS 2.54mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.7128
≥1 USD $0.7128
≥10 USD $0.60104
≥100 USD $0.53966
≥500 USD $0.441558
≥1000 USD $0.392498
≥3000 USD $0.343429
Inventory: 1248
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series 302
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 26
Number of Rows 2
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.358 9.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.6 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.358 inch
Body Depth 0.508 inch
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1500VAC V
Dimensions
Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post 1.25μin 0.032μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
