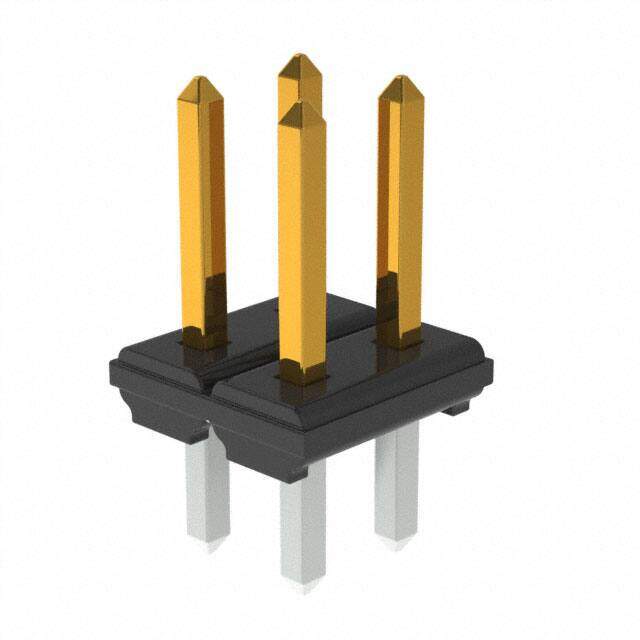

XJ8C-0411 image
Favorite
XJ8C-0411 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header M 4 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.78056
≥100 USD $0.700832
≥500 USD $0.57339
≥1000 USD $0.50967
≥3000 USD $0.445966
Inventory: 1113
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 5.90μin 0.150μm
Length 5.1mm

Technical

Max Current Rating 2A
Max Voltage Rating (AC) 300V
Contact Resistance 20mOhm
Overall Contact Length 0.339 8.60mm
Housing Color Black
Contact Length - Mating 0.169 4.30mm
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.059 1.50mm
Depth 5mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 300V
Number of Rows 2
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series XJ8
Published 2003
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Housing Material Polyphenylene
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass, Nickel

Supply Chain

Factory Lead Time 8 Weeks
