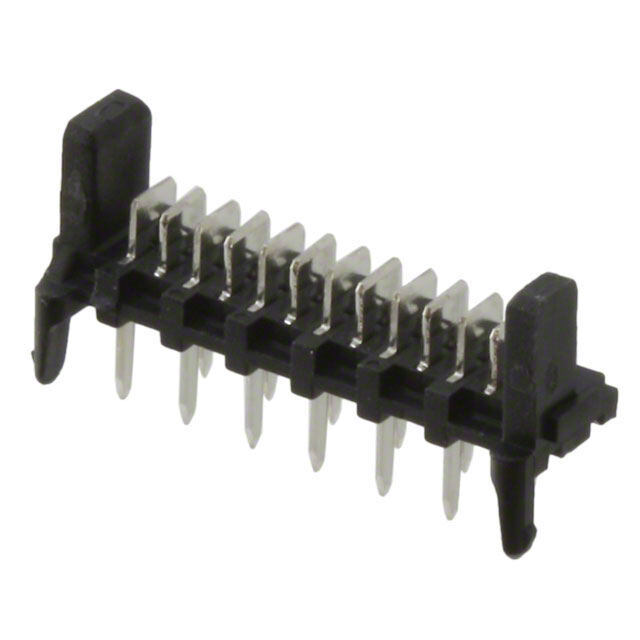

90325-9012

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 12POS 1.27MM
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.835233
≥1 USD $0.835233
≥10 USD $0.787956
≥100 USD $0.743359
≥500 USD $0.701281
≥1000 USD $0.661583
Inventory: 3919
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Brass
Contact Plating Tin
Mount Through Hole
Housing Material Plastic

Technical

Published 2006
Pbfree Code yes
Termination Solder
ECCN Code EAR99
Connector Type Blade Pin
Number of Positions 12
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature STAGGERED CONFIGURATION
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 1.27mm
Total Number of Contacts 12
Orientation Straight
Current Rating 1.2A
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Number Of PCB Rows 2
Lead Pitch 1.27mm
PCB Contact Pattern STAGGERED
Body Breadth 0.235 inch
Contact Gender Male
UL Flammability Code 94V-0
Lead Length 3.3mm
Body Depth 0.252 inch
Contact Resistance 15mOhm
Body/Shell Style RECEPTACLE
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 750VAC V
PCB Contact Row Spacing 2.54 mm
Durability 30 Cycles
Contact Pattern RECTANGULAR

Dimensions

Height 6.4mm
Length 19.5mm
Width 5mm
Plating Thickness 200μin

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
