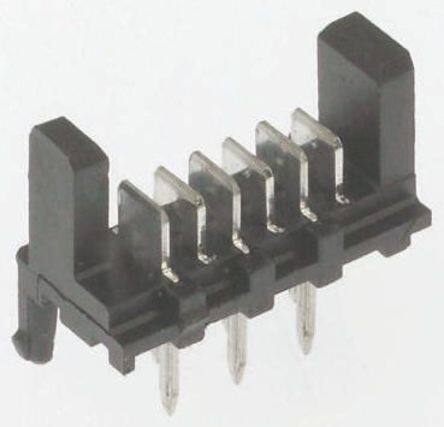

90325-9010
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 10POS 1.27MM TIN T/H
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.59983
≥1 USD $0.59983
≥10 USD $0.565872
≥100 USD $0.533845
≥500 USD $0.50363
≥1000 USD $0.475119
Inventory: 9636
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Plating Thickness 200μin
Technical
Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Durability 30 Cycles
PCB Contact Row Spacing 2.54 mm
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZED HOUSING
Body/Shell Style RECEPTACLE
Contact Resistance 15mOhm
Body Depth 0.252 inch
UL Flammability Code 94V-0
Body Breadth 0.235 inch
PCB Contact Pattern STAGGERED
Lead Pitch 1.27mm
Number Of PCB Rows 2
Body Length or Diameter 0.667 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Current Rating 1.2A
Orientation Vertical
Total Number of Contacts 10
Pitch 1.27mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature STAGGERED CONFIGURATION
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 10
Connector Type Blade Pin
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
Published 2006
Physical
Housing Material PBT
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 7 Weeks
