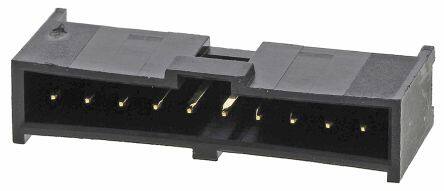

90136-1210
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 10POS .100 STR GOLD
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.904317
≥1 USD $0.904317
≥10 USD $0.853127
≥100 USD $0.804835
≥500 USD $0.759283
≥1000 USD $0.716298
Inventory: 3620
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Material Glass, Polyester
Housing Material Polyester
Technical
Published 2002
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Male Pin
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 1
Gender Male
Additional Feature C-GRID III
HTS Code 8536.69.40.40
Fastening Type Latch
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 350V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 10
Orientation Vertical
Depth 7.21mm
Current Rating 3A
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 350V
Reliability COMMERCIAL
Number Of PCB Rows 1
Lead Pitch 2.54mm
Contact Length - Mating 6.7564mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.284 inch
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
Contact Resistance 20mOhm
Insulation Resistance 5GOhm
Body/Shell Style RECEPTACLE
Durability 500 Cycles
Number of Poles 10
Max Voltage Rating (DC) 350.35kV
Contact Pattern RECTANGULAR
Glow Wire Compliant Non-compliant
Voltage - Working 350V
Dimensions
Length 28.75mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
