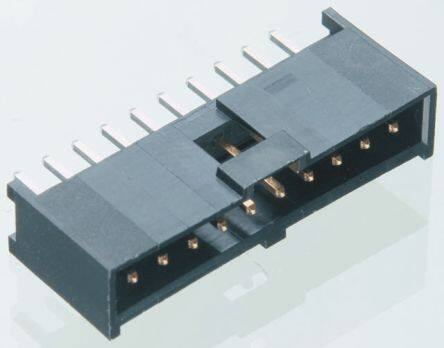

90136-1110
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 10POS .100" STR TIN
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.128817
≥1 USD $1.128817
≥10 USD $1.06492
≥100 USD $1.004641
≥500 USD $0.947781
≥1000 USD $0.894128
Inventory: 5750
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Housing Material Polyester
Technical
Published 2007
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Male Pin
Number of Positions 10
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 1
Additional Feature C-GRID III
HTS Code 8536.69.40.40
Fastening Type Latch
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 350V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 10
Orientation Vertical
Current Rating 3A
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 350V
Reliability COMMERCIAL
Number Of PCB Rows 1
Lead Pitch 2.54mm
Contact Length - Mating 6.7564mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.284 inch
Contact Gender Male
UL Flammability Code 94V-0
Body Depth 0.429 inch
Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
Contact Resistance 20mOhm
Body/Shell Style RECEPTACLE
Durability 500 Cycles
Max Voltage Rating (DC) 350.35kV
Contact Pattern RECTANGULAR
Insertion Force-Max 3.0024 N
Glow Wire Compliant Non-compliant
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
