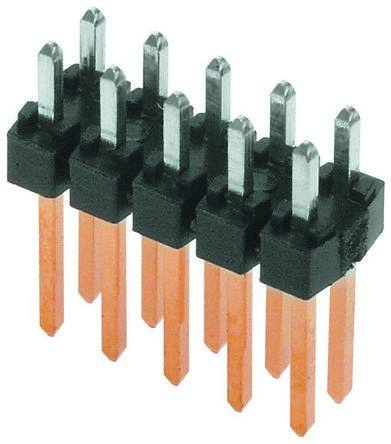

90131-0133 image
Favorite
90131-0133 image
Favorite

90131-0133

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 26POS .100 STR TIN
PDF
/
Buying Options
Total Price: USD $8.88
Unit Price: USD $8.879729
≥1 USD $8.879729
≥10 USD $8.377111
≥100 USD $7.902928
≥500 USD $7.455595
≥1000 USD $7.033582
Inventory: 4582
Minimum: 1
-
+

Technical Details

Technical

Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 6.7564mm
Number of Contacts 26
Number Of PCB Rows 2
Row Spacing - Mating 2.54 mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Current Rating 3A
Depth 5.08mm
Orientation Straight
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature C-GRID III
Voltage - Rated 350V
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Connector Type Male Pin
ECCN Code EAR99
Termination Solder
Pbfree Code yes
JESD-609 Code e3
Published 2011
Withdrawl Force-Min .1946 N
Contact Pattern RECTANGULAR
Dielectric Withstanding Voltage 350VDC V
Body/Shell Style RECEPTACLE
Insulation Resistance 5000000000Ohm

Physical

Housing Material Polyester
Mount Through Hole
Contact Plating Tin
Contact Material Brass

Supply Chain

Factory Lead Time 11 Weeks

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Plating Thickness 160μin
Length 33.02mm
