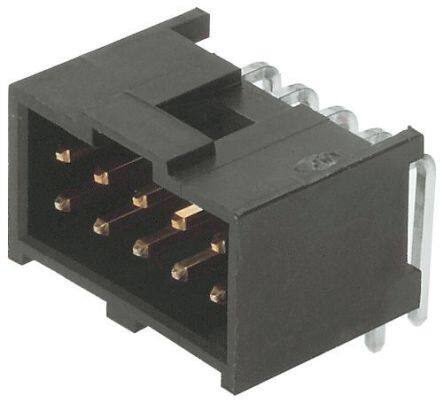

90130-3108 image
Favorite
90130-3108 image
Favorite

90130-3108

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 8POS .100" R/A TIN
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.678532
≥1 USD $0.678532
≥10 USD $0.64013
≥100 USD $0.603891
≥500 USD $0.569709
≥1000 USD $0.537462
Inventory: 1172
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length - Termination 0.114 inch

Technical

Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Max Voltage Rating (DC) 350.35kV
Durability 500 Cycles
Dielectric Withstanding Voltage 700VAC V
Body/Shell Style RECEPTACLE
Insulation Resistance 1GOhm
Contact Style SQ PIN-SKT
Rated Current (Signal) 3A
Body Depth 0.515 inch
UL Flammability Code 94V-0
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 6.7564mm
Number of Contacts 8
Lead Pitch 2.54mm
Number Of PCB Rows 2
Row Spacing - Mating 2.54 mm
Reliability COMMERCIAL
Voltage - Rated AC 350V
Reference Standard UL
Number of Conductors ONE
Current Rating 3A
Orientation Right Angle
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 350V
Subcategory Headers and Edge Type Connectors
Additional Feature SHROUDED
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Connector Type Male Pin
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
Published 2008

Physical

Housing Material Polyester
Mount Through Hole
Contact Plating Tin
Contact Material Brass

Supply Chain

Factory Lead Time 7 Weeks
