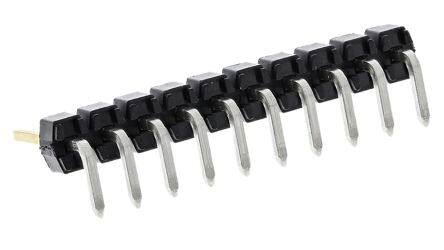

90121-0770
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 10POS .100 R/A GOLD
PDF
/
Buying Options
Total Price: USD $1.7
Unit Price: USD $1.697835
≥1 USD $1.697835
≥10 USD $1.601728
≥100 USD $1.511068
≥500 USD $1.425537
≥1000 USD $1.344844
Inventory: 1260
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Technical
Voltage - Working 350V
Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Number of Poles 10
Dielectric Withstanding Voltage 350VDC V
Number of Circuits 9
Body/Shell Style RECEPTACLE
Insulation Resistance 5GOhm
Contact Resistance 20mOhm
Contact Style SQ PIN-SKT
Rated Current (Signal) 3A
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 6.7564mm
Lead Pitch 2.54mm
Number Of PCB Rows 1
Reliability COMMERCIAL
Voltage - Rated AC 350V
Reference Standard UL
Number of Conductors ONE
Current Rating 3A
Orientation Right Angle
Total Number of Contacts 10
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 350V
Subcategory Headers and Edge Type Connectors
Additional Feature C-GRID III
Gender Male
Number of Rows 1
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Connector Type Male Pin
Termination Solder
Pbfree Code yes
JESD-609 Code e3
Published 2002
Packaging Bulk
Physical
Housing Material Polyester
Material Glass, Polyester
Mount Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
