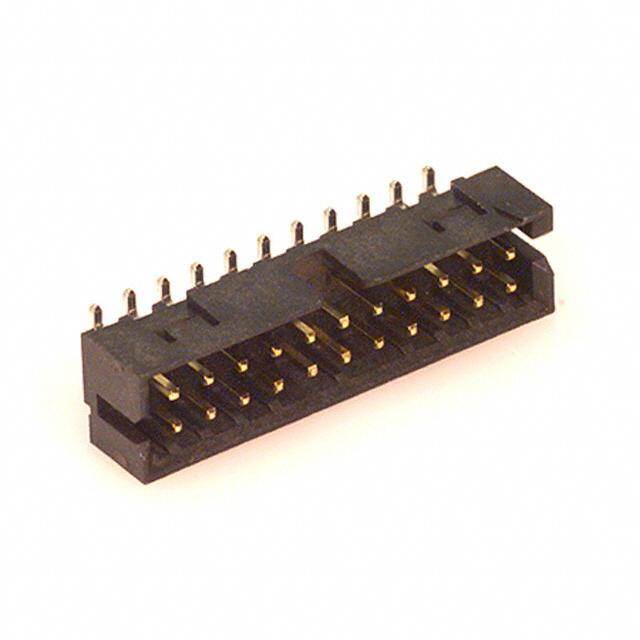

87832-2220
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 22POS 2MM VERT SMD
PDF
/
Buying Options
Total Price: USD $4.91
Unit Price: USD $4.908388
≥1 USD $4.908388
≥10 USD $4.630554
≥100 USD $4.368445
≥500 USD $4.121176
≥1000 USD $3.887905
Inventory: 989
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Plating Thickness 15μin
Technical
Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Durability 100 Cycles
Dielectric Withstanding Voltage 500VAC V
Polarization Key CTR W/GUIDE SLOTS
Body/Shell Style RECEPTACLE
Insulation Resistance 5000000000Ohm
Contact Resistance 30mOhm
Contact Style SQ PIN-SKT
Rated Current (Signal) 1A
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 3.5814mm
Lead Pitch 2mm
Number Of PCB Rows 2
Shrouding Yes RoHS Compliant: Yes
Row Spacing - Mating 2.0066 mm
Body Length or Diameter 0.97 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Current Rating 2A
Orientation Vertical
Total Number of Contacts 22
Pitch 2mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 125V
Subcategory Headers and Edge Type Connectors
Additional Feature TUBE PACKAGE
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 22
Connector Type Male Pin
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2011
Physical
Housing Material Thermoplastic
Mount Surface Mount
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
