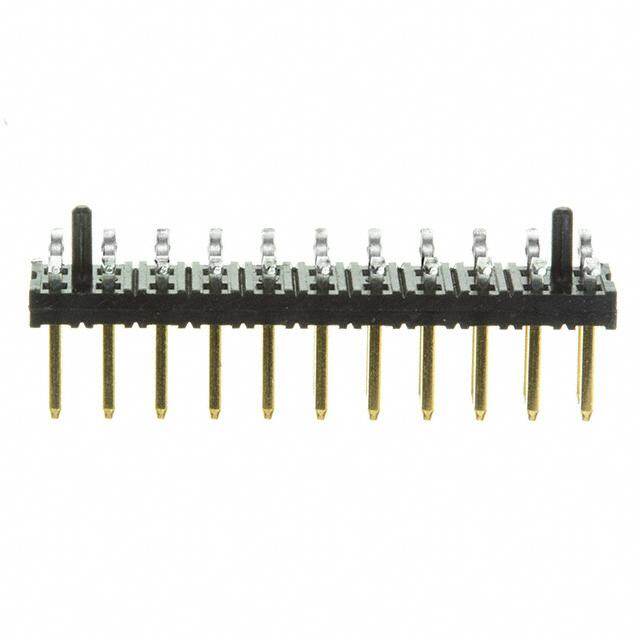

87759-2250
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 2MM HDR. 22 CKT. Vert. SMT
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.148207
≥1 USD $2.148207
≥10 USD $2.026605
≥100 USD $1.911894
≥500 USD $1.803676
≥1000 USD $1.701578
Inventory: 4923
Minimum: 1
-
+
Technical Details
Technical
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 125V
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 22
Connector Type Male Pin
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
Published 2011
Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Durability 100 Cycles
Dielectric Withstanding Voltage 500VAC V
Max Voltage Rating (AC) 125V
Body/Shell Style RECEPTACLE
Insulation Resistance 1000000000Ohm
Contact Style SQ PIN-SKT
Rated Current (Signal) 2A
Body Depth 0.059 inch
UL Flammability Code 94V-0
Body Breadth 0.157 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 3.81mm
Lead Pitch 2mm
Number Of PCB Rows 2
Row Spacing - Mating 2.0066 mm
Reliability COMMERCIAL
Number of Conductors ONE
Current Rating 2A
Orientation Vertical
Total Number of Contacts 22
Pitch 2mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Physical
Housing Material Plastic
Mount Surface Mount
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 13 Weeks
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Plating Thickness 15μin
