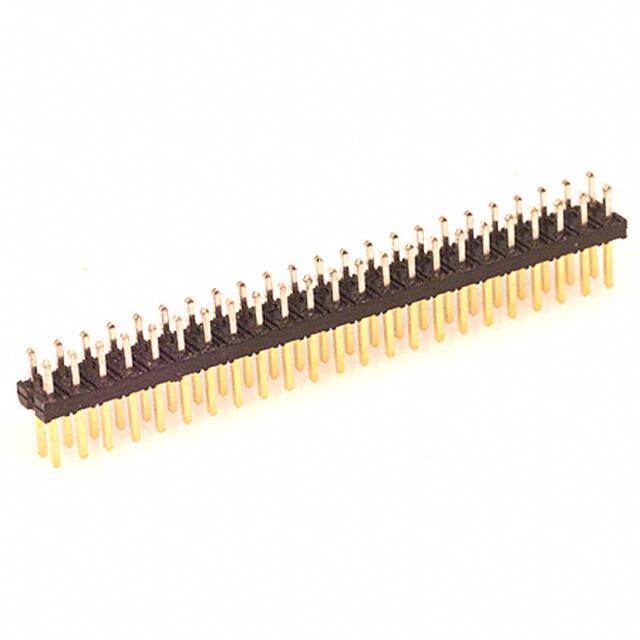

87758-4616
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 46POS 2MM VERT GOLD
PDF
/
Buying Options
Total Price: USD $2.51
Unit Price: USD $2.513326
≥1 USD $2.513326
≥10 USD $2.371065
≥100 USD $2.236861
≥500 USD $2.110243
≥1000 USD $1.990788
Inventory: 7314
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Housing Material Nylon
Technical
Published 2005
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
Connector Type Male Pin
Number of Positions 46
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Additional Feature TRAY PACKAGE
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 125V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2mm
Total Number of Contacts 46
Orientation Vertical
Current Rating 2A
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.807 inch
Row Spacing - Mating 2.0066 mm
Number Of PCB Rows 2
Lead Pitch 2mm
Contact Length - Mating 3.9878mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.157 inch
Contact Gender Male
UL Flammability Code 94V-0
Lead Length 2.6mm
Body Depth 0.059 inch
Rated Current (Signal) 2A
Contact Style SQ PIN-SKT
Insulation Resistance 1000000000Ohm
Body/Shell Style RECEPTACLE
Durability 100 Cycles
Contact Pattern RECTANGULAR
Mating Post Length 4mm
Glow Wire Compliant Non-compliant
Dimensions
Plating Thickness 15μin
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
