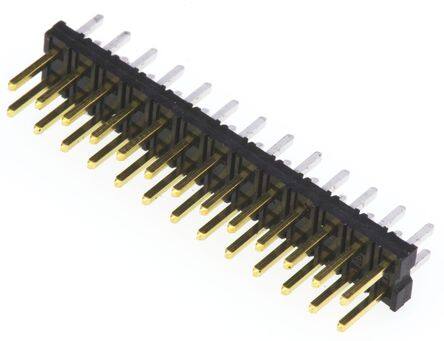

87758-2616 image
Favorite
87758-2616 image
Favorite

87758-2616

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 26POS 2MM VERT GOLD
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.143947
≥1 USD $1.143947
≥10 USD $1.079197
≥100 USD $1.01811
≥500 USD $0.960484
≥1000 USD $0.906117
Inventory: 5064
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Plating Thickness 15μin

Technical

Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Durability 100 Cycles
Body/Shell Style RECEPTACLE
Insulation Resistance 1000000000Ohm
Contact Style SQ PIN-SKT
Rated Current (Signal) 2A
Body Depth 0.059 inch
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.157 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 3.9878mm
Lead Pitch 2mm
Number Of PCB Rows 2
Row Spacing - Mating 2.0066 mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Current Rating 2A
Orientation Vertical
Total Number of Contacts 26
Pitch 2mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 125V
Subcategory Headers and Edge Type Connectors
Additional Feature TRAY PACKAGE
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 26
Connector Type Male Pin
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2011

Physical

Housing Material Thermoplastic
Mount Through Hole
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 9 Weeks
