70555-0010
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

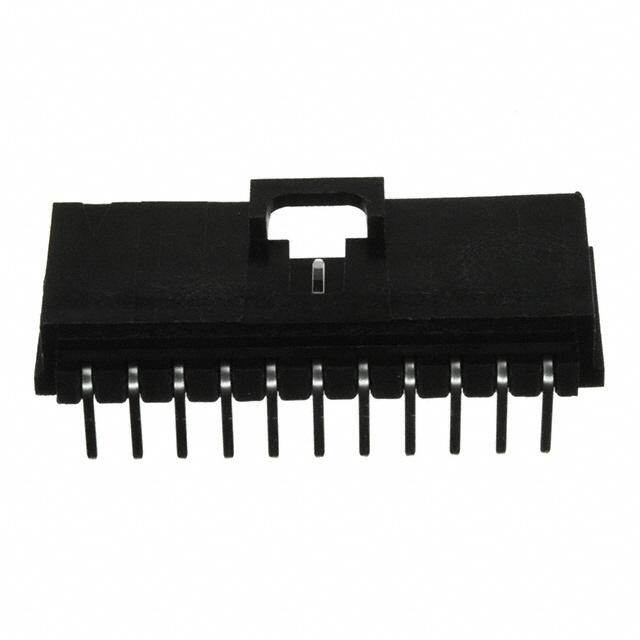

SL Rectangular Connector Header
PDF
/
Inventory: 7163
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
UL Flammability Code 94V-0
Body Depth 0.535 inch
Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
Contact Resistance 15mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Body/Shell Style RECEPTACLE
Termination Type SOLDER
Polarization Key CTR W/GUIDE SLOTS
Dielectric Withstanding Voltage 600VAC V
Durability 25 Cycles
Contact Finish Termination TIN (150) OVER NICKEL
Contact Pattern RECTANGULAR
Insulator Color BLACK
Operating Temperature (Min) -40°C
Contact Gender MALE
Body Breadth 0.275 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 125°C
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Body Length or Diameter 1.236 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Reach Compliance Code compliant
Terminal Pitch 2.54mm
Total Number of Contacts 11
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN (150) OVER NICKEL
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature SL
Number of Rows 1
Connector Type BOARD CONNECTOR
ECCN Code EAR99
Part Status Active
Pbfree Code icon-pbfree yes
JESD-609 Code e3
Published 2011
Dimensions
Plating Thickness 150u inch
Length - Termination 0.13 inch
Compliance
RoHS Status RoHS Compliant
Physical
Board Mounting Option SOLDER HOLDING POSTS
Mounting Style RIGHT ANGLE
Mounting Option 1 LATCH
Insulation Material GLASS FILLED POLYCARBONATE
Mounting Type BOARD
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
