70246-6401
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

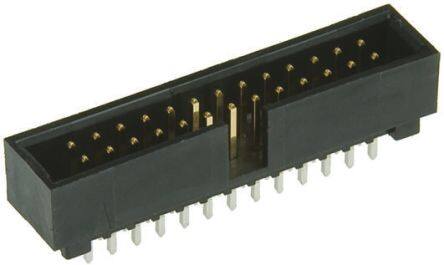

Headers & Wire Housings 2.54mm CGrid Hdr Shr d /Slt .38AuLF 64Ckt
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.881808
≥1 USD $1.881808
≥10 USD $1.775289
≥100 USD $1.674806
≥500 USD $1.579998
≥1000 USD $1.490568
Inventory: 3664
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 8.89mm
Length 88.9mm
Height 9.27mm
Technical
Glow Wire Compliant Non-compliant
UL Flammability Code 94V-0
Contact Length - Mating 6.096mm
Row Spacing - Mating 2.54 mm
Current Rating 2.5A
Reach Compliance Code unknown
Orientation Vertical
Total Number of Contacts 64
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 250V
Additional Feature SHROUDED
Gender Male
Number of Rows 2
Color Black
Number of Positions 64
Connector Type Male Pin
Termination Solder
Part Status Discontinued
JESD-609 Code e3
Published 2005
Physical
Housing Material Polyester
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
Alternative Model
