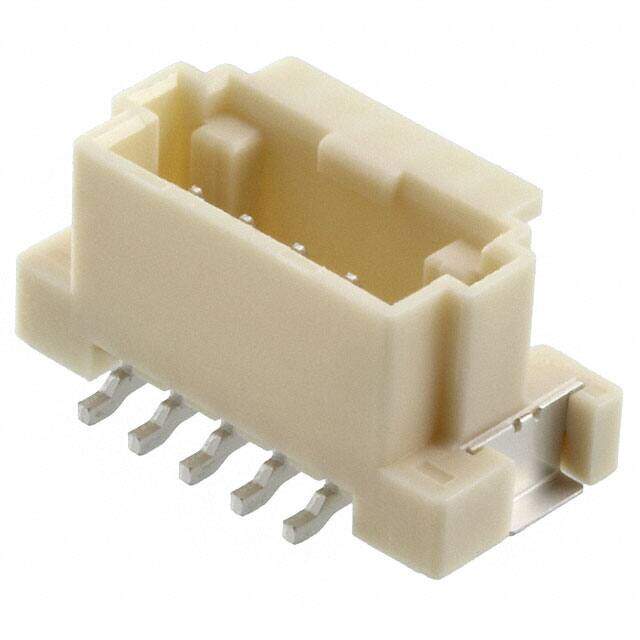

5600200520
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 5POS 2MM
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.519029
≥1 USD $0.519029
≥10 USD $0.489651
≥100 USD $0.461934
≥500 USD $0.435789
≥1000 USD $0.41112
Inventory: 2517
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Stack Height (Mating) 9.3mm
Technical
Durability 30 Cycles
Dielectric Withstanding Voltage 700VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.079 inch
Rated Current (Signal) 3A
Operating Temperature (Min) -40°C
Body Breadth 0.307 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.315 8.00mm
Terminal Pitch 2.0066mm
Total Number of Contacts 5
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Lock
Number of Rows 1
Applications Automotive, Industrial
Number of Positions 5
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
JESD-609 Code e3
Series DuraClik 560020
Published 2015
Packaging Tape & Reel (TR)
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
