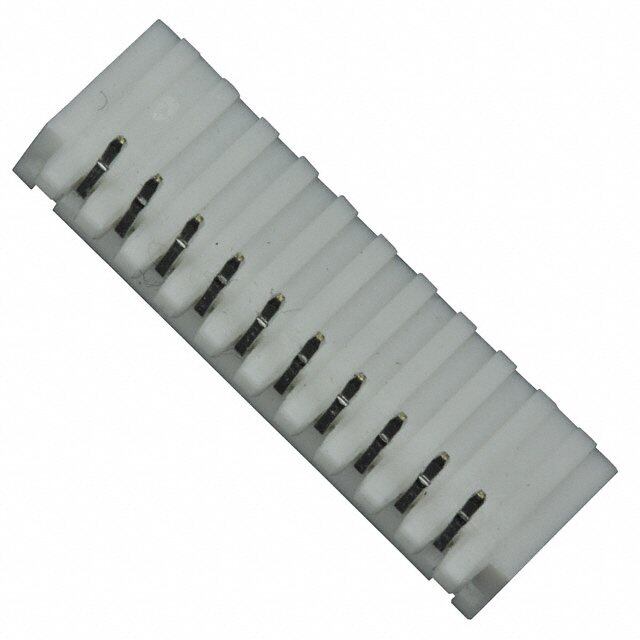

53325-1060
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 10POS 2MM
PDF
/
Inventory: 3910
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Glow Wire Compliant Non-compliant
Contact Resistance 20mOhm
UL Flammability Code 94V-0
Contact Length - Mating 3.429mm
Current Rating 2A
Orientation Right Angle
Total Number of Contacts 10
Pitch 2mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN
HTS Code 8536.69.40.40
Voltage - Rated 125V
Gender Male
Number of Rows 1
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 10
Connector Type Male Pin
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2004
Physical
Housing Material Polyester
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 7 Weeks
