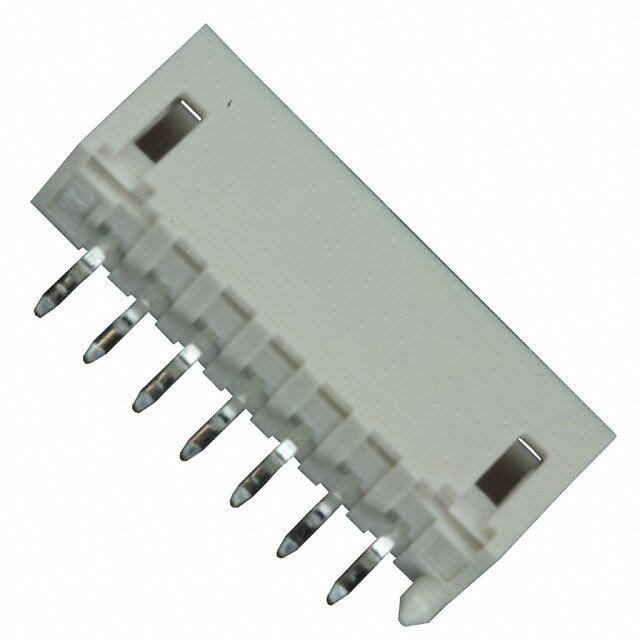

53324-0760
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM 7POS PCB TIN
PDF
/
Buying Options
Total Price: USD $2.03
Unit Price: USD $2.026455
≥1 USD $2.026455
≥10 USD $1.911753
≥100 USD $1.803541
≥500 USD $1.701451
≥1000 USD $1.605148
Inventory: 921
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Contact Resistance 20mOhm
Contact Style SQ PIN-SKT
Body Depth 0.236 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 3.429mm
Number Of PCB Rows 1
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Current Rating 2A
Orientation Vertical
Total Number of Contacts 7
Pitch 2mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Voltage - Rated 125V
Gender Male
Number of Rows 1
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 7
Connector Type Male Pin
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2003
Physical
Housing Material Nylon
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 7 Weeks
