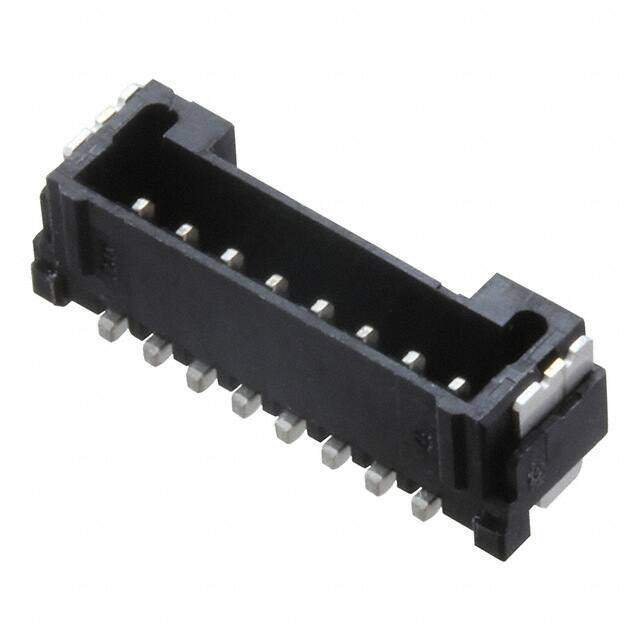

5055680871
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 8POS 1.25MM
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.0208
≥1 USD $1.0208
≥10 USD $0.84392
≥100 USD $0.703208
Inventory: 12829
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2016
Series Micro-Lock PLUS 505568
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 8
Applications Automotive, General Purpose, Industrial
Number of Rows 1
Voltage - Rated 50VAC/DC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Total Number of Contacts 8
Insulation Height 0.165 4.20mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.049 1.25mm
Insulation Color Black
Reference Standard UL
Body Length or Diameter 0.522 inch
Shrouding Shrouded - 4 Wall
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Stack Height (Mating) 7.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
