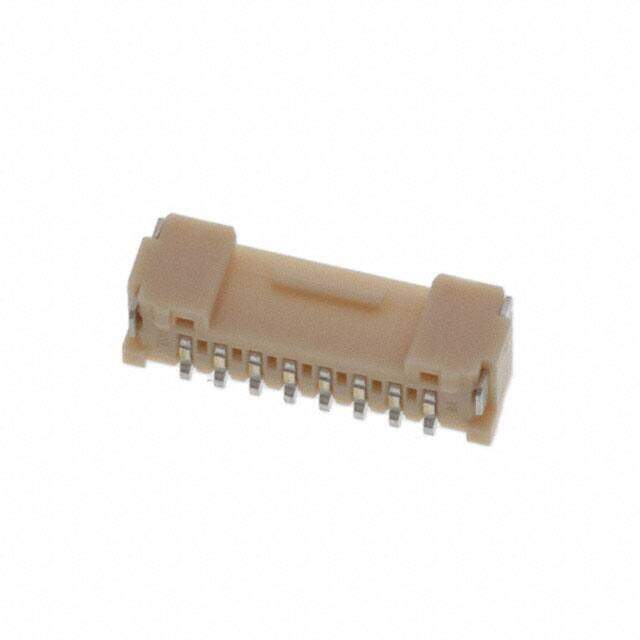

5041940870
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 8POS 1.25MM
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.24728
≥1 USD $0.24728
≥10 USD $0.22792
≥100 USD $0.21912
≥500 USD $0.21032
Inventory: 63479
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.3mm
Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Technical
Shrouding Shrouded - 4 Wall
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.163 4.15mm
Contact Type Male Blade
Contact Finish - Mating Tin
Fastening Type Latch Lock
Number of Rows 1
Number of Positions 8
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series Micro-Lock 504194
Published 2014
Packaging Tape & Reel (TR)
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 11 Weeks
