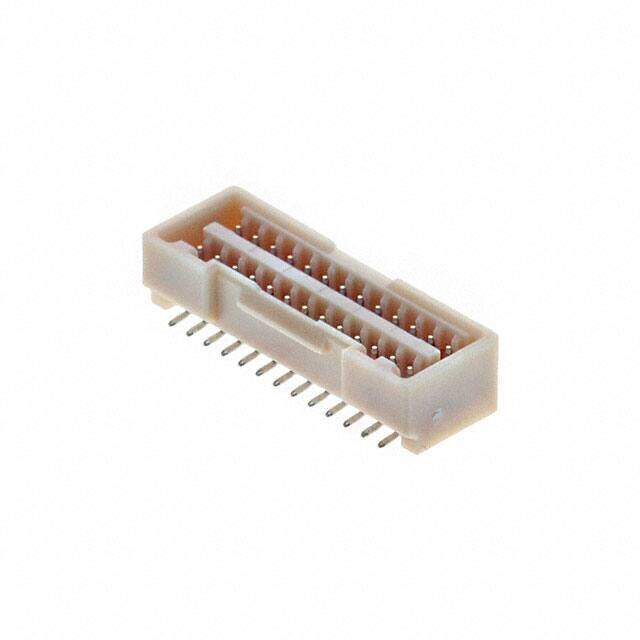

5041872670
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
504187 26P HEADER
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.2496
≥1 USD $1.2496
≥10 USD $1.03664
≥100 USD $0.863544
Inventory: 6227
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.95mm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Technical
Glow Wire Compliant Non-compliant
Durability 30 Cycles
PCB Contact Row Spacing 4.699 mm
Dielectric Withstanding Voltage 700VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.049 inch
Insulation Resistance 100000000Ohm
Rated Current (Signal) 1.5A
Body Depth 0.189 inch
Operating Temperature (Max) 85°C
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Body Length or Diameter 0.754 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.189 4.80mm
Orientation Vertical
Total Number of Contacts 26
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Lock
HTS Code 8536.69.40.40
Number of Rows 2
Number of Positions 26
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Micro-Lock 504187
Published 2016
Packaging Tape & Reel (TR)
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 19 Weeks
