5040500791
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

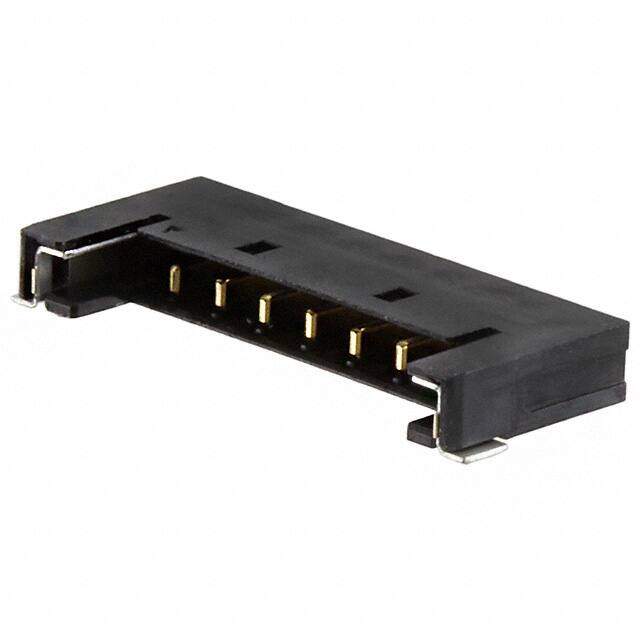

CONN HEADER SMD R/A 7POS 1.5MM
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.2496
≥1 USD $1.2496
≥10 USD $1.06744
≥100 USD $0.881672
≥500 USD $0.696062
Inventory: 287
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount, Right Angle
Contact Shape Rectangular
Insulation Material Polyamide (PA), Nylon
Mounting Option 1 LOCKING
Technical
Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Published 2012
Series Pico-Lock 504050
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 7
Applications Automotive, General Purpose, Industrial, Lighting, Telecommunications
Number of Rows 1
Voltage - Rated 150V
HTS Code 8536.69.40.40
Fastening Type Detent Lock
Contact Finish - Mating Gold
Contact Type Male Blade
Current Rating (Amps) Varies by WireGAuge
Total Number of Contacts 7
Insulation Height 0.079 2.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.059 1.50mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Gender FEMALE
Body Depth 0.24 inch
Contact Resistance 20mOhm
Mating Contact Pitch 0.059 inch
Polarization Key POLARIZED HOUSING
Dimensions
Contact Finish Thickness - Mating 3.94μin 0.100μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
