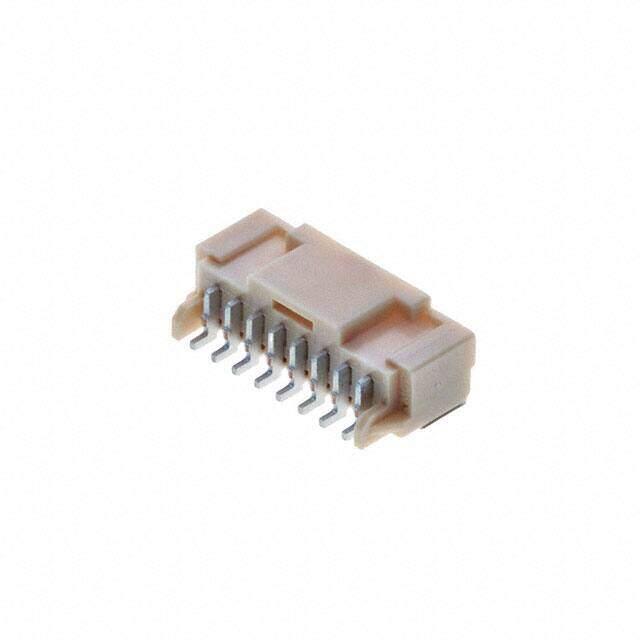

5023520810
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 8 POS 2mm Solder RA SMD DuraClik? Embossed T/R
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.0856
≥1 USD $2.0856
≥10 USD $1.77496
≥100 USD $1.465992
Inventory: 3996
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Polyamide
Technical
Packaging Tape & Reel (TR)
Published 2015
Series DuraClik 502352
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 8
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications Automotive, Industrial
Number of Rows 1
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Total Number of Contacts 8
Orientation Right Angle
Terminal Pitch 2.0066mm
Depth 9.4mm
Insulation Height 0.252 6.40mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Body Breadth 0.252 inch
Housing Color Natural
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Durability 30 Cycles
Glow Wire Compliant Non-compliant
Dimensions
Length 20mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
